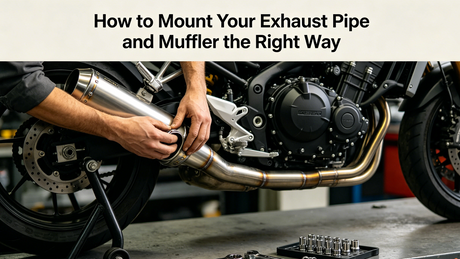

How to Mount Your Exhaust Pipe and Muffler the Right Way

To mount a exhaust pipe motorcycle and exhaust muffler silencer, dry-fit the system first, connect the header at the cylinder, slide the mid-pipe into the muffler with a fresh gasket, then secure all clamps and brackets working front to back. Tighten everything only after the full system is aligned, then check for leaks and rattles. Most riders can finish the job in 60–90 minutes with basic hand tools.

Swapping out a stock exhaust for an aftermarket pipe is one of the most rewarding upgrades you can make to a motorcycle. A new exhaust pipe and muffler can sharpen throttle response, shave weight, and give your bike a deeper, more aggressive note. The catch? A poorly mounted exhaust leaks, rattles, and can even damage your engine over time.

This guide walks you through mounting a exhaust pipe motorcycle and exhaust muffler silencer step by step. You'll learn what tools to grab, how to fit common sizes like a 51mm or 60mm exhaust, and how to set a DB killer for the sound you want. Whether you're fitting an Arrow exhaust to a ZX10R, an Austin Racing system to a Ducati Panigale V2, or a Yoshimura AT2 to a CBR1000RR, the core process is the same.

What tools do you need to mount a motorcycle exhaust?

Before you touch a single bolt, gather your gear. Mounting an exhaust muffler and silencer is straightforward, but the right tools make the difference between a clean install and a frustrating afternoon.

• Socket and wrench set (metric, since most motorcycle exhaust hardware is metric)

• Torque wrench for accurate, even tightening

• Allen keys for spring-clamp and bracket bolts

• New exhaust gaskets at the header and mid-pipe joints

• High-temperature anti-seize for header studs

• Exhaust spring puller (for systems that use tension springs)

• Penetrating oil to free up old, corroded bolts

• A motorcycle stand to keep the bike stable

Always let your engine cool fully before starting. Hot exhaust components cause serious burns, and metal expands when heated, which throws off your fitment.

Step-by-step: how to mount your exhaust pipe and muffler

Step 1: Remove the old exhaust system

Loosen the clamp connecting the header pipe to the muffler, then remove the bolts holding the system to the frame and the cylinder head. Spray penetrating oil on stubborn bolts and give it a few minutes to work. Support the system with one hand as you pull the final bolt so it doesn't drop.

Step 2: Clean the mating surfaces

Once the old exhaust is off, scrape away any old gasket material from the cylinder head flange. A clean surface is essential for a leak-free seal. Wipe down the slip-joints where the mid-pipe meets the muffler so they slide together smoothly.

Step 3: Dry-fit the new exhaust pipe and muffler

This step saves the most headaches. Loosely assemble the entire system before tightening anything. Connect the header at the cylinder, slide the mid-pipe into the exhaust muffler tail pipe, and hang the muffler on its bracket. Many aftermarket systems are universal and use a 51mm or 60mm slip-on interface, so confirm your adapter matches your bike's outlet.

Step 4: Fit the gaskets and connect the header

Place a fresh gasket at the cylinder head, then hand-thread the header bolts. Apply a small amount of anti-seize to the threads first. Get every bolt started before you tighten any of them, so the flange seats evenly.

Step 5: Slide in the muffler and set the slip-joint

Insert the muffler onto the mid-pipe to your preferred depth. A deeper insertion tucks the muffler tighter to the bike; a shallower fit pushes it back. Make sure the muffler clears your bodywork, swingarm, and rear tire at every point of suspension travel.

Step 6: Secure all clamps and brackets

With everything aligned, tighten in sequence from the engine back. Snug the header bolts to spec with your torque wrench, then tighten the slip-joint clamp, and finally bolt down the muffler bracket. Even, gradual tightening prevents stress cracks and warped flanges.

Step 7: Install or adjust the DB killer

If your muffler includes a DB killer (also called a baffle or silencer insert), decide whether to run it. A 51mm DB killer reduces noise and keeps the bike street-legal in most areas. Leaving it out gives a louder, more open sound but can run afoul of noise regulations. The insert usually fixes in place with a single Allen bolt at the muffler tip.

Step 8: Check for leaks and rattles

Start the engine and let it idle. Listen for ticking or hissing near the header, which signals an exhaust leak. Feel for escaping gas around the joints with the back of your hand held a safe distance away. Then rev gently and listen for any rattle, which points to a loose bracket or a muffler touching the frame.

How do you choose the right exhaust size and fitment?

Picking the correct diameter and mount style matters as much as the install itself. Most modern sport bikes use a 51mm slip-on connection, while larger-displacement machines and some full systems use a 60mm interface. Always match the exhaust inlet to your bike's mid-pipe or buy a universal system with the correct adapter.

The table below shows common exhaust setups across popular models to help you find the right fit.

A universal stainless steel exhaust pipe with a 51mm or 60mm interface fits a wide range of bikes, from the YZF R6 and MT07 to the Z900 and ZX6R, which makes it a flexible choice if you ride more than one machine.

Why does proper exhaust mounting matter?

A correctly mounted exhaust does more than sound good. A secure system protects your engine and your wallet for three key reasons:

1. Prevents exhaust leaks. A leak at the header drops performance and can lean out your fuel mixture, which risks engine damage over time.

2. Stops vibration damage. A loose muffler vibrates against the frame and bodywork, cracking welds and scratching paint.

3. Keeps you legal. A properly fitted DB killer keeps your sound within local limits, helping you avoid fines and failed inspections.

Stainless steel systems resist corrosion and handle high heat well, which is why they're a common choice for both slip-on mufflers and full exhaust systems.

Final checks before you ride

Mounting your own exhaust pipe and muffler is well within reach for most riders with basic tools and a careful approach. Dry-fit first, use fresh gaskets, tighten in sequence, and always check for leaks before your first ride. Take your time during the alignment stage, and the rest of the job falls into place.

Once your exhaust is mounted, run the engine to operating temperature and recheck every bolt after your first short ride. Heat cycles can loosen new hardware, so a quick re-torque after 50 to 100 miles is smart insurance.

If you're shopping for a new system, look for a stainless steel exhaust with the correct 51mm or 60mm fitment for your bike, and confirm whether it includes a DB killer for the sound and legality you want.

Frequently asked questions

How long does it take to install a motorcycle exhaust?

Most slip-on muffler installs take 30 to 60 minutes. A full exhaust system replacement usually runs 60 to 90 minutes, depending on how corroded the old hardware is and whether you need to remove bodywork to reach the header bolts.

Do I need a new gasket when mounting an exhaust?

Yes. Always fit a fresh gasket at the cylinder head joint. Reusing an old, crushed gasket almost guarantees an exhaust leak, which hurts performance and can damage your engine.

What's the difference between a 51mm and 60mm exhaust?

The number refers to the inlet diameter of the muffler or pipe. A 51mm exhaust suits most mid-size and sport bikes, while a 60mm exhaust is common on larger-displacement machines. Match the diameter to your bike's mid-pipe or use a universal system with the right adapter.

Should I run my exhaust with or without the DB killer?

Run the DB killer if you want a quieter, street-legal bike that passes noise inspections. Remove it for a louder, more open sound, but check your local noise regulations first, since an uncapped exhaust can result in fines.

Can I mount a universal exhaust on any motorcycle?

A universal exhaust fits many bikes as long as the inlet diameter matches your mid-pipe and the muffler clears your bodywork and rear tire. Universal 51mm and 60mm systems cover popular models like the R6, MT07, Z900, and ZX6R, but always confirm clearance and bracket fitment before buying.
