To size a motorcycle exhaust pipe silencer, match the inlet diameter of the muffler to your bike's mid-link pipe output—typically 51mm for most sport and naked bikes. Consider pipe length, material, and header diameter alongside silencer volume to ensure proper back pressure, sound reduction, and fitment.
Swapping out a stock exhaust is one of the most rewarding modifications you can make to a motorcycle. A well-matched motorcycle exhaust pipe silencer transforms the sound, shaves weight, and can unlock measurable performance gains. Get the sizing wrong, though, and you'll end up with poor fitment, excessive drone, or a loss of low-end torque.
This guide walks you through every measurement and decision point you need to size an exhaust muffler pipe correctly for your motorcycle—whether you're upgrading a Yamaha MT-07, an Aprilia RS457, a Kawasaki Z1000, or almost any other platform.
The exhaust system on a motorcycle performs two jobs simultaneously: it scavenges burnt gases away from the engine efficiently, and it attenuates the sound of combustion. The motorcycle exhaust pipe silencer—also called the muffler, can, or exhaust silencer—sits at the end of the system and handles most of the noise reduction through a combination of baffles, perforated inner tubes, and sound-absorbing packing material.
A full exhaust system consists of:
Header pipes – the primary pipes that bolt directly to the engine
Mid-link pipe (connecting pipe) – bridges the header to the muffler
Exhaust silencer muffler – the final canister that reduces noise and shapes exit flow
Slip-on upgrades replace only the silencer and sometimes the mid-link pipe, while full exhaust system replacements cover every component from header to tip.
Getting the sizing right starts with four numbers. Measure before you order anything.
The inlet diameter of the exhaust muffler pipe silencer must match your bike's mid-link pipe outlet. The most common diameter across sport, naked, and touring motorcycles is 51mm (approximately 2 inches). Some smaller-displacement bikes use 38mm or 45mm inlets, while larger-displacement machines can run 54mm or 60mm.

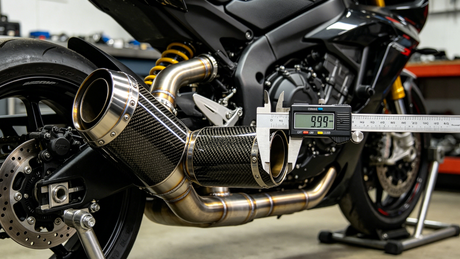

Use a caliper or a tape measure to measure the outer diameter (OD) of the mid-link pipe at its exit point. The muffler inlet should slide over it cleanly—too tight and you'll crack the clamp, too loose and exhaust gases will leak.
For a full exhaust system replacement, the header pipe diameter is just as critical. Larger-diameter headers reduce back pressure and favor peak power at high RPM. Smaller headers maintain back pressure and improve torque at low and mid RPM. Most 600–1000cc street bikes use header tubes between 38mm and 44mm.
Longer, larger-volume silencers produce deeper, quieter tones. Shorter, smaller-volume cans are louder and shed more weight. A standard slip-on muffler for a sport bike typically measures between 300mm and 400mm in length. If your bike sits close to a noise regulation limit, choose a longer canister or verify the dB rating before purchasing.
Pipe length between the header and silencer affects exhaust pulse timing. Longer mid-link pipes shift the peak torque curve slightly lower in the RPM range. For most street applications, staying close to the stock length is the safest starting point when upgrading to an aftermarket motorcycle exhaust pipe silencer.
The table below summarizes common exhaust pipe silencer sizing guidelines by motorcycle category. Use it as a starting reference before confirming fitment against your specific model year.
Motorcycle Type |
Header OD (mm) |
Mid-Link / Inlet OD (mm) |
Muffler Length (mm) |
Common Material |
|---|---|---|---|---|
125–250cc Sport |
28–32 |
38–45 |
250–320 |
Stainless Steel |
300–500cc Naked / Sport |
32–38 |
45–51 |
280–350 |
Stainless / Titanium |
600–700cc Sport / Naked |
38–42 |
51 |
300–380 |
Stainless / Carbon Fiber |
800–1000cc Sport |
40–44 |
51–54 |
320–400 |
Titanium / Stainless |
1000cc+ Naked / Touring |
44–50 |
51–60 |
350–450 |
Stainless Steel |
For example, the Yamaha MT-07 uses a 51mm interface on its mid-link pipe, making it compatible with a wide range of slip-on mufflers and full system replacements using standard 51mm connections. The Kawasaki Z1000 (2010–2021) also runs a full exhaust system with stainless-compatible 51mm tube sizing across front pipe and silencer connections.
The material you choose affects wall thickness, which in turn affects the effective flow diameter—so it's worth factoring in before finalizing measurements.
Stainless Steel is the most common material for aftermarket exhaust silencer mufflers. Wall thickness typically runs 1.2–1.5mm, it handles heat well, and it resists corrosion reliably over years of riding. The Aprilia RS457 stainless steel front-end exhaust system is a good example of a full stainless replacement built for direct fitment.
Titanium is lighter than stainless by roughly 40%, with slightly thinner walls (0.8–1.2mm) that can increase effective bore diameter. Titanium develops a distinctive blue heat tint and is the preferred choice for riders chasing weight reduction without sacrificing durability.
Carbon Fiber is used primarily for the outer sleeve of the silencer canister, not the inner perforated tube. Carbon fiber muffler exhaust systems look striking and save weight, but they require a stainless or titanium inner core to handle exhaust temperatures correctly. Avoid mounting a carbon fiber canister near heat sources without adequate heat shielding.
A flexible exhaust muffler pipe—a short section of corrugated stainless tubing—absorbs engine vibration and allows minor misalignments between the header and the silencer. These are particularly useful on twin-cylinder and inline-four engines where the exhaust routing makes a perfectly rigid connection difficult.
If the silencer you're fitting sits slightly out of axial alignment with the mid-link pipe, a short flexible section (typically 100–150mm long) can resolve the fitment without requiring custom fabrication. Always confirm the flexible pipe's inner diameter matches the rest of the exhaust system to avoid creating a restriction.
Air-cooled engines present slightly different sizing considerations compared to liquid-cooled platforms. Air-cooled singles and parallel twins tend to produce more heat at the pipe, which accelerates wear on thinner-walled tubes. For air exhaust muffler silencer applications, choose stainless steel with a wall thickness of at least 1.5mm and avoid carbon fiber heat sleeves unless they're rated for air-cooled operating temperatures.
Mismatching the inlet diameter by even 2–3mm leads to loose connections, exhaust leaks, and rattling at high RPM.
Choosing a silencer that's too short for street use can push the noise output above legal limits and affects low-end torque delivery.
Ignoring the mid-link pipe length when fitting a full system means the silencer may not clear the passenger footpeg or exhaust bracket.
Skipping a test fitment before final tightening often results in discovering clearance issues after everything is bolted together.
Sizing a motorcycle exhaust pipe silencer correctly comes down to four measurements—inlet diameter, header diameter, muffler length, and pipe length—combined with the right material for your riding style and climate. When those variables align, the difference in sound, feel, and performance is immediately noticeable.
Jilang Motorcycle Exhaust Systems manufactures motorcycle mufflers and full exhaust systems for a wide range of platforms including Yamaha, Kawasaki, Aprilia, Honda, Ducati, and more, with stainless steel, titanium, and carbon fiber options available. Products are manufactured to international quality standards and ship globally.
The most common inlet diameter for aftermarket motorcycle exhaust pipe silencers is 51mm. This size fits the majority of 600cc–1000cc sport and naked bikes. Smaller-displacement models (125–300cc) typically use 38mm or 45mm inlets. Always measure your existing mid-link pipe outlet before purchasing.
A slip-on exhaust replaces only the muffler and sometimes the mid-link connecting pipe. A full exhaust system replaces everything from the header pipes to the silencer tip. Full systems offer greater performance and weight savings; slip-ons are easier to install and more affordable.
Yes. Larger-diameter header pipes reduce back pressure and increase peak power at high RPM, while smaller diameters maintain back pressure and improve low-to-mid RPM torque. Matching the correct diameter to your engine's power characteristics is essential for a balanced result.
Use a flexible exhaust muffler pipe when the mid-link pipe and silencer inlet are slightly misaligned, or when you need to absorb engine vibration on a high-vibration platform. Choose a flexible section with an inner diameter matching the rest of the exhaust system to avoid flow restrictions.
Stainless steel offers the best balance of durability, corrosion resistance, and cost. Titanium is lighter (approximately 40% weight reduction) and produces a distinctive visual finish, making it ideal for performance builds. Carbon fiber outer sleeves add visual appeal and reduce weight but must be paired with a metal inner core rated for exhaust temperatures.
