The exhaust system is the circulatory system of a vehicle's engine, and at its heart lies a component often misunderstood: the muffler. While frequently dismissed as a simple silencer, the modern exhaust muffler pipe is a sophisticated piece of engineering that serves a triad of critical functions: noise reduction, emissions control, and performance optimization. It is the component that transforms the violent, explosive noise of combustion into a controlled, acceptable tone while managing the flow of spent gases.
A muffler's responsibilities are complex and interconnected:
1.Noise Abatement (Acoustic Tuning): This is its primary namesake function. The sound waves generated by each engine combustion event are incredibly loud and harsh. The muffler's internal architecture is designed to cancel out these sound waves through two main principles:
◇Reflection (Chambered Design): Sound waves are directed through a series of chambers and tubes. As these waves bounce off the internal walls, they collide with other waves coming from the opposite direction. This phenomenon, called destructive interference, causes the waves to cancel each other out, effectively reducing the overall sound volume.
◇Absorption (Straight-Through Design): The muffler is packed with sound-absorbing material, typically fiberglass or steel wool. Perforated tubes run through this packing. As sound waves pass through the perforations, their energy is absorbed by the material and dissipated as heat, leaving a much quieter exhaust note to exit the tailpipe.
2.Backpressure Management: This is the most debated aspect of muffler performance. Engines require a certain amount of backpressure—a resistance to the flow of exhaust gases—to operate efficiently at low speeds. It helps in scavenging, the process of pulling the next charge of air and fuel into the cylinder. A muffler that is too restrictive creates excessive backpressure, choking the engine and reducing power and efficiency. A well-designed muffler finds a balance, providing enough backpressure for low-end torque without restricting high-RPM horsepower. Performance mufflers aim to minimize backpressure for maximum flow.
3.Emission Control Support: The muffler works in concert with other exhaust components. It helps manage the flow of gases to the catalytic converter, ensuring it operates at the correct temperature to break down harmful pollutants like nitrogen oxides (NOx), carbon monoxide (CO), and unburnt hydrocarbons.
The external case, typically made from aluminized steel or stainless steel for corrosion resistance, hides a carefully designed internal structure. The main types are:
◇Chambered Mufflers (Baffled): These use a series of walls (baffles) and chambers to force exhaust gases on a tortuous path. This is highly effective at noise reduction but often creates more backpressure, which can impact peak horsepower. They produce a deep, classic, often "rumbly" tone associated with American muscle cars.

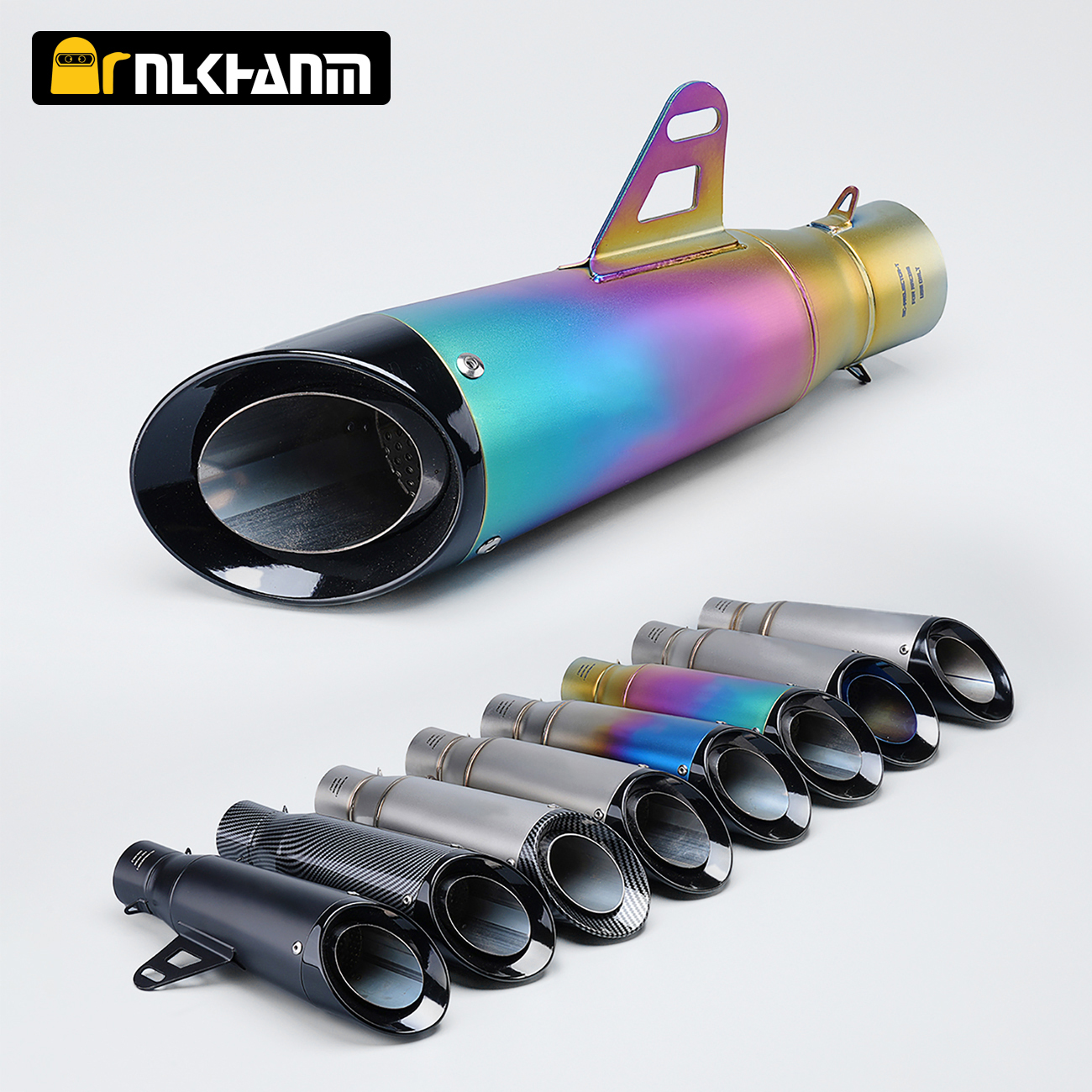

◇Straight-Through (Performance) Mufflers: Also known as "glasspacks" or "turbo" mufflers, these feature a perforated tube that runs straight through the center of the canister, which is packed with sound-absorbing material. This design allows for much freer exhaust flow, reducing backpressure and boosting high-end power, while the packing material dampens the sound. They are louder and have a higher-pitched, raspier tone than chambered mufflers.
◇Auxiliary Resonators: Many modern performance systems use a muffler and a separate resonator. The resonator is tuned to target and cancel a specific problematic frequency range, allowing the main muffler to be less restrictive while still maintaining a refined and desirable exhaust note.
The choice of material directly impacts the lifespan and cost of the muffler.
◇Aluminized Steel: The steel is coated in an aluminum-silicon alloy. This coating provides good resistance to corrosion from the outside (road salt, moisture) and the inside (acidic condensation). It is a cost-effective option and is standard on most OEM (Original Equipment Manufacturer) systems. However, once the coating is scratched or compromised, the underlying steel will rust.
◇Stainless Steel (409 or 304): The premium choice.
Grade 409: An affordable stainless alloy with good corrosion resistance, far superior to aluminized steel. It is commonly used in aftermarket performance systems.
Grade 304: The highest quality. It contains more nickel and chromium, offering exceptional resistance to rust and corrosion. It is the material of choice for high-end aftermarket exhausts and is often guaranteed for life. It is also brighter and more visually appealing, often used for visible tips.
For enthusiasts, changing the muffler is one of the most popular first modifications for three reasons:
1.Sound Enhancement: To give the vehicle a more aggressive, sporty, or distinctive exhaust note.
2.Performance Gains: A less restrictive performance muffler can reduce backpressure, allowing the engine to breathe easier. This often results in a modest increase in horsepower and torque, particularly in conjunction with other bolt-on modifications like a cold air intake.
3.Aesthetic Appeal: Aftermarket mufflers often come with larger, polished stainless steel tips that can enhance the look of the vehicle's rear end.
Important Considerations for an Upgrade:
◇Legal Compliance: Always check local and state laws regarding exhaust noise and modifications. Many areas have decibel limits, and "straight-piping" a vehicle (removing the muffler entirely) is illegal for on-road use in most jurisdictions.
◇Drone: A poor-quality or mismatched muffler can create an unpleasant resonant frequency inside the cabin at certain highway speeds, known as "drone." This can cause driver fatigue. High-quality systems are engineered to minimize this effect.
◇Professional Installation: Proper installation is critical to prevent leaks, which are noisy, harmful to performance, and can allow dangerous fumes like carbon monoxide to enter the cabin.
◇Loud Rumbling Noise: The most obvious sign. This indicates internal baffles have broken down due to corrosion and rust.
◇Rattling Sounds: Could be a loose internal baffle rattling around or the entire muffler hanging loosely from broken brackets.
◇Hissing or Popping Sounds: May indicate a leak in the muffler itself or a connection point upstream.
◇Visible Holes or Severe Rust: Especially along the seams or bottom of the unit.
◇A Smell of Exhaust Fumes: Inside the cabin, which is a serious safety hazard requiring immediate attention.
The exhaust muffler pipe is far from a simple "silencer." It is a key player in the vehicle's performance, efficiency, and environmental footprint. It transforms the raw, chaotic energy of combustion into a managed flow and a controlled acoustic profile. From the quiet hum of a luxury sedan to the aggressive roar of a sports car, the character of a vehicle's voice is dictated by the intricate engineering within this unassuming canister. Whether maintaining an OEM system for reliability or choosing an aftermarket unit for performance and sound, understanding the muffler's role is essential for any vehicle owner.
